PRODUCT
E Series Recessed Downlight
Product ID : AG-DL-E
Features :
● High lighting efficiency 100LM/W
● Integrated heat sink design, die-casting aluminum, excellent heat dissipation
● Branded driver and LEDs make the fixture with long lifespan
● Dali Dimmable, Triac dimmable or 0-10V dimmable is available
● Multiple beam angle: 15°/24°/38° optional
● 3 Years warranty.
Product Description
Data sheet:
| Model | Power | Dimension | Cut-out | PF | Beam angle | Lighting effect | CRI | LED | Flicker free |
| AG-DL-5E | 5W | D65*60mm | 55mm | ≥0.95 | 15°/24° /38° | 100LM/W | >80RA | Bridgelux | Yes |
| AG-DL-7E | 7W | D85*70mm | 75mm | ≥0.95 | 15°/24° /38° | 100LM/W | >80RA | Bridgelux | Yes |
| AG-DL-10E | 10W | D85*70mm | 75mm | ≥0.95 | 15°/24° /38° | 100LM/W | >80RA | Bridgelux | Yes |
| AG-DL-15E | 15W | D105*100mm | 95mm | ≥0.95 | 15°/24° /38° | 100LM/W | >80RA | Bridgelux | Yes |
| AG-DL-20E | 20W | D105*100mm | 95mm | ≥0.95 | 15°/24° /38° | 100LM/W | >80RA | Bridgelux | Yes |

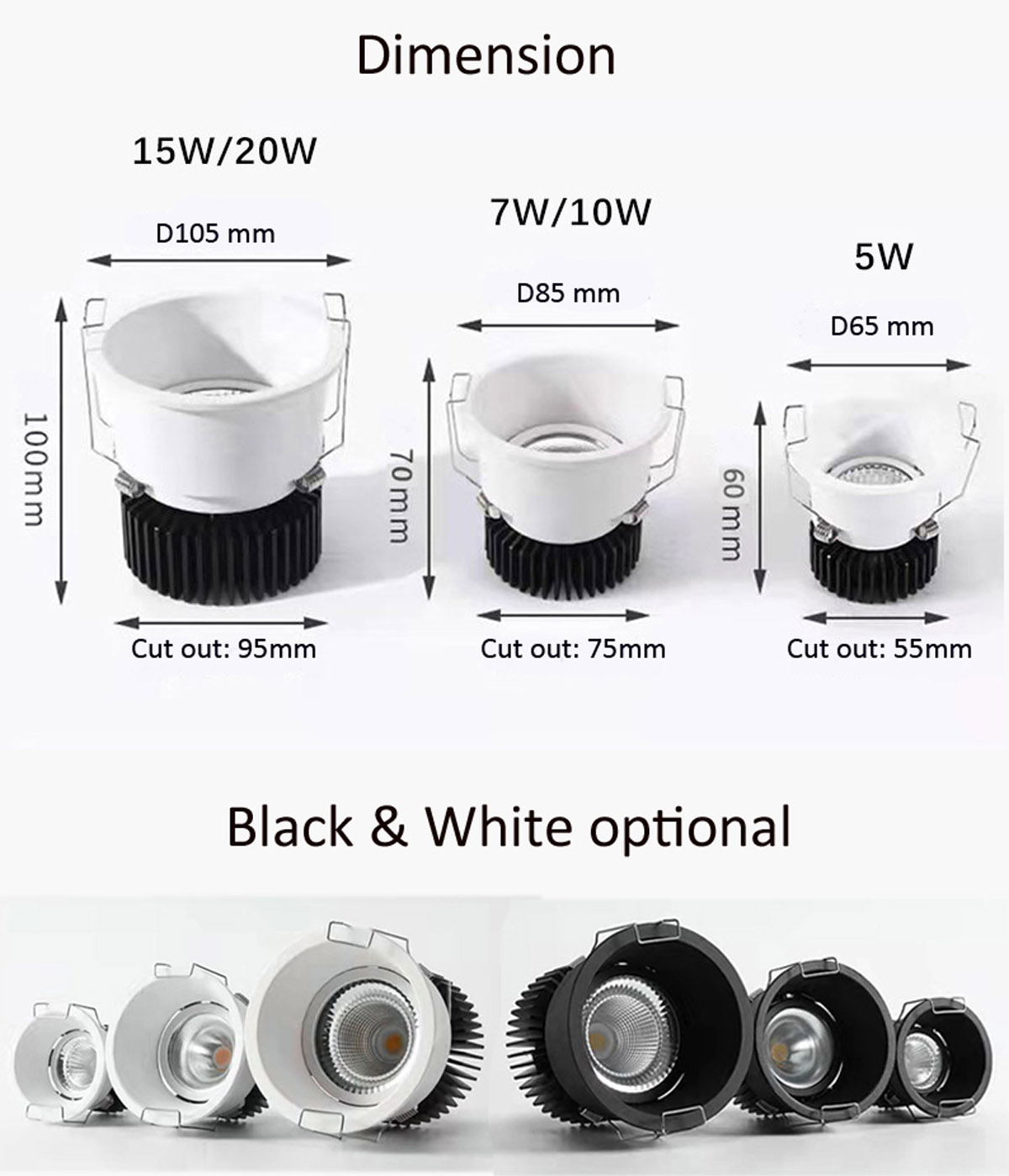

Size:
Get a free sample
